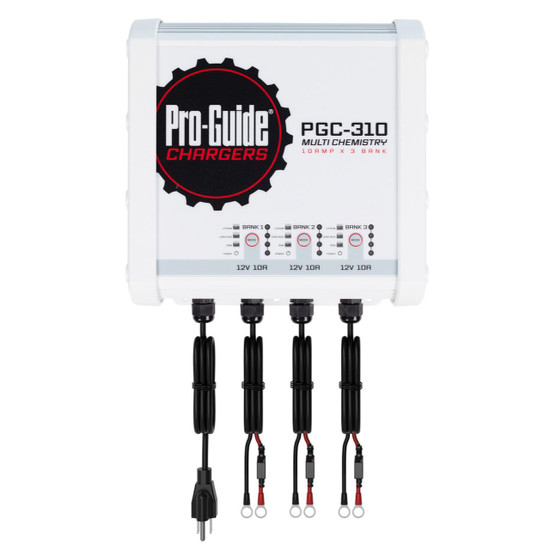

The Pro-Guide PGC-310 is a 12V Lead Acid / AGM / Lithium on-board battery charger.
12V LEAD ACID // 12V AGM // 12V LITHIUM // ACTIVATE MODE
Each Bank can select one of three charge profiles and allows the consumer to mix and match for their optimum setup.
Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or Simply Hold the button for (3-5) seconds to enter a manual Activation Mode.
The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline ensuring that you'll be fully charged for your next adventure.
With over 40 years of experience, Pro-Guide is proud to stand behind this This charger is covered by a 2 Year Free, and 4 Year Total Warranty.
Protection:
- Output Over-Voltage
- Output Over Current
- Output Short Circuit
- Output Reverse Polarity
- Over Temperature
Input:
- Input Voltage: AC 110-120V
- Frequency: 60Hz
- Input Current: <6A
Battery Type Lead Acid/AGM/Lithium
Output Voltage DC 12V x 3
Max Output Voltage 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, & 14.4-14.7 for Lithium Battery
Output Current 10A x 3
Length (in / mm) 9.06in / 230mm
Width (in / mm) 9.96in / 253mm
Height (in / mm) 3.86in / 98mm
Weight (lbs / kg) 15.9lbs / 7.2kg
IP Rating 68
