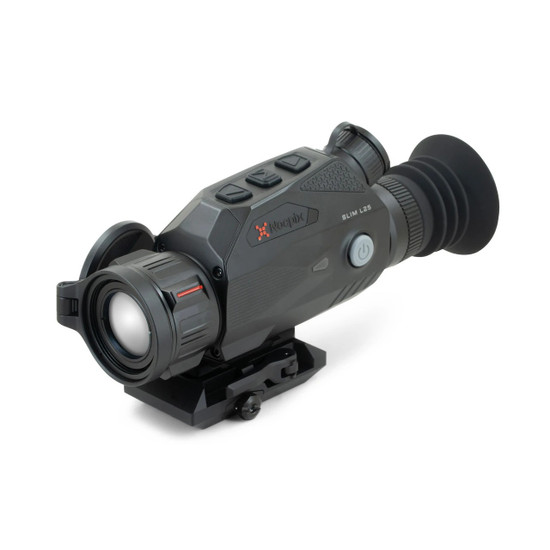

Nocpix SLIM L25 Multi-function Thermal Optic 384x288 25 mm

NOCPIX SLIM L25 Multi-Function Thermal Optic - 384x288, 25mm

The NOCPIX SLIM L25 Multi-Function Thermal Optic delivers impressive thermal imaging performance in a compact, versatile platform designed for hunters who want the flexibility of both a handheld thermal monocular and a weapon-mounted thermal sight. Featuring a 384×288 thermal sensor, 25mm F/0.9 germanium objective lens, 12µm pixel pitch, and =18mK thermal sensitivity, the SLIM L25 provides detailed thermal imaging and reliable target detection at distances up to 1,400 yards.

Built around versatility, the NOCPIX SLIM L25 can quickly transition from a handheld scanner to a rifle-mounted thermal optic using the included quick-detach Picatinny mount. The proprietary dual-throw mounting system features magnetic alignment assistance for fast, secure attachment and a 1-MOA return-to-zero, allowing hunters to scan their surroundings and quickly mount the optic when needed.

The compact magnesium alloy housing keeps the SLIM L25 lightweight yet durable, while the ambidextrous one-handed controls and quiet soft-touch buttons make operation simple in the field. A high-resolution 1024×768 AMOLED display, 2.5X optical magnification, and up to 4X digital magnification provide a clear and comfortable viewing experience with generous 48mm eye relief.

The SLIM L25 is equipped with recoil-activated video recording, automatically capturing footage before and after a shot. With 32GB of onboard storage, image capture, video recording, Wi-Fi connectivity, mobile app compatibility, and video output, documenting your hunts is easy.

Powered by common 18650-style rechargeable batteries, the NOCPIX SLIM L25 offers 4+ hours of runtime with convenient USB-C external power capability and magnetic charging. With an IP67 waterproof rating, operating temperatures from -4°F to 122°F, and recoil resistance rated for cartridges up to .300 Win. Mag. and 7mm Mag, this thermal optic is built for demanding hunting conditions.

Whether used as a compact handheld thermal scanner or a quick-mount thermal weapon sight, the NOCPIX SLIM L25 offers exceptional versatility, advanced thermal performance, and premium features at an outstanding value.

Key Features

• Multi-function design works as a handheld thermal monocular or weapon-mounted thermal sight
• 384×288 NOCPIX thermal sensor
• 25mm F/0.9 germanium objective lens
• 12µm pixel pitch
• =18mK thermal sensitivity
• 1,400-yard detection range
• 2.5X optical magnification
• 4X digital magnification
• 50Hz refresh rate for smooth thermal imaging
• High-resolution 1024×768 AMOLED display
• Quick-detach Picatinny mount with magnetic alignment aid
• 1-MOA return-to-zero capability
• Recoil-activated video recording captures footage before and after the shot
• 32GB onboard storage
• Photo capture and onboard video recording
• Wi-Fi and mobile app connectivity
• Picture-in-Picture mode
• One-Shot Zero
• 8 reticle options, including dynamic, static, and DIY reticles
• Six color palettes: White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, and Viridian
• 48mm eye relief
• Manual focus with -5 to +5 diopter adjustment
• Powered by rechargeable 18650-style batteries
• 4+ hours of runtime
• USB-C external power capability
• Magnetic charging system
• Magnesium alloy housing
• IP67 waterproof and dustproof rating
• Recoil rated to 1,000 g/s²
• Compatible with recoil levels generated by .300 Win. Mag. and 7mm Magnum rifles
• Fast startup in less than 10 seconds with instant standby activation
• User-updatable firmware
• 5-year warranty

Specification Details

• Device Technology Thermal Imaging
• Sensor Resolution 384×288
• Sensor Pixel Size 12µm
• Thermal Sensitivity =18mK
• Sensor Frame Rate 50Hz
• Objective Focal Length 25mm
• Objective Diameter 25mm
• Objective F# F/0.9
• Objective Lens Material Germanium
• Detection Range 1,400 Yards
• Optical Magnification 2.5X
• Digital Magnification 4X
• Field of View 10.5° × 7.9°
• Display AMOLED
• Display Resolution 1024×768
• Eye Relief 48mm
• Diopter Adjustment -5 to +5
• Focus Manual
• Reticles 8
• Color Palettes 6
• Picture-in-Picture Yes
• One-Shot Zero Yes
• Onboard Recording Yes
• Storage 32GB
• Image Capture Yes
• Wi-Fi Yes
• Mobile App Yes
• Video Output Yes
• Battery Type 18650 Rechargeable
• Runtime 4+ Hours
• External Power USB-C
• Charging Magnetic Charging Port
• Mounting Interface QD Picatinny
• Housing Material Magnesium Alloy
• Recoil Rating 1,000 g/s²
• Waterproof Rating IP67
• Operating Temperature -4°F to 122°F
• Length 8.50 in.
• Width 2.99 in.
• Height 1.81 in.
• Weight 18.7 oz.
• Warranty 5 Years
