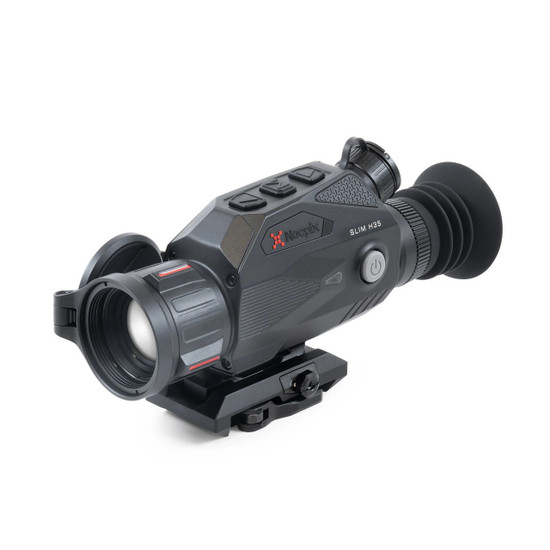

Nocpix SLIM H35 Multi-function Thermal Optic 640x512 35 mm

Nocpix SLIM H35 Multi-Function Thermal Optic - 640x512, 35mm

The Nocpix SLIM H35 Multi-Function Thermal Optic delivers premium thermal performance in a compact, versatile platform designed for both handheld scanning and weapon-mounted use. Featuring a high-resolution 640×512 thermal sensor, 12µm pixel pitch, and impressive <18mK thermal sensitivity, the SLIM H35 provides exceptional image detail and target recognition in challenging lighting and weather conditions.

Built around a fast 35mm F/1.0 germanium objective lens and 2X optical magnification, the Nocpix SLIM H35 offers an excellent balance of field of view and long-range capability. With a detection range of up to 1,750 yards, hunters can scan wide areas while maintaining the detail needed for positive target identification.

The SLIM H35 is designed to quickly transition between a handheld thermal monocular and a weapon-mounted thermal sight. Its proprietary quick-detach Picatinny mount features a dual-throw locking system and magnetic alignment aid for fast attachment and consistent return-to-zero performance. Whether scanning a field, hunting predators, or preparing for a shot, the SLIM H35 offers exceptional flexibility in one thermal optic.

A crisp 1024×768 AMOLED display, generous 48mm eye relief, and ergonomic ambidextrous controls provide a comfortable viewing experience. Quiet, soft-touch buttons and a lightweight yet durable magnesium alloy housing make the SLIM H35 easy to operate in the field.

The Nocpix SLIM H35 also includes recoil-activated video recording, capturing footage before and after the shot, along with onboard video and image recording, Wi-Fi connectivity, mobile app compatibility, and 32GB of internal storage. The unit is powered by interchangeable 18650 rechargeable batteries and can also be powered or charged through its USB-C/magnetic charging system.

With an IP67 weather-resistance rating, recoil resistance rated for cartridges up to .300 Win. Mag. and 7mm Rem. Mag., and a five-year warranty, the Nocpix SLIM H35 is built for serious hunters who demand versatility, image quality, and dependable performance.

Key Features

• 640×512 high-resolution thermal sensor
• 12µm pixel pitch
• <18mK thermal sensitivity
• 35mm F/1.0 germanium objective lens
• 2X optical magnification
• Up to 4X digital magnification
• Detection range up to 1,750 yards
• 1024×768 high-contrast AMOLED display
• Use as a handheld thermal monocular or weapon-mounted sight
• Quick-detach Picatinny mount with magnetic alignment aid
• 1-MOA return-to-zero capability
• 48mm eye relief
• Recoil-activated video recording
• Onboard video and image capture
• 32GB internal storage
• Wi-Fi and mobile app compatibility
• Picture-in-Picture mode
• Eight reticle options, including dynamic and customizable reticles
• Seven color palettes
• Interchangeable 18650 rechargeable batteries
• USB-C external power capability
• Magnetic charging system
• Magnesium alloy housing
• IP67 weather resistance
• Recoil rated up to .300 Win. Mag. / 7mm Rem. Mag.
• Fast startup in under 10 seconds
• Weight: 18.7 oz.
• 5-year warranty

Nocpix SLIM H35 Thermal Optic Specifications

• Device Technology Thermal Imaging
• Sensor Resolution 640×512
• Sensor Pixel Size 12µm
• Thermal Sensitivity <18mK
• Sensor Frame Rate 50Hz
• Objective Lens 35mm Germanium
• Objective F# F/1.0
• Optical Magnification 2X
• Digital Magnification 4X
• Detection Range 1,750 Yards
• Display 1024×768 AMOLED
• Eye Relief 48mm
• Field of View 12.5° × 9.4°
• Storage 32GB
• Onboard Recording Yes
• Wi-Fi Yes
• Mobile App Yes
• Picture-in-Picture Yes
• Battery Type 18650 Rechargeable
• External Power USB-C
• Mount QD Picatinny
• Housing Magnesium Alloy
• Recoil Rating 1000 g/s²
• Environmental Rating IP67
• Operating Temperature -4°F to 122°F
• Weight 18.7 oz.
• Length 8.50 in.
• Width 2.99 in.
• Height 1.81 in.
• Warranty 5 Years
