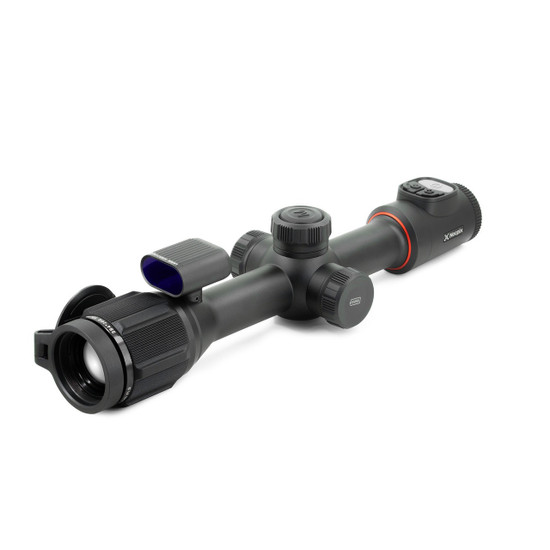

NOCPIX BOLT L35R Thermal Weapon Sight with LRF - 384x288, 35mm
Step into advanced thermal imaging and long-range precision with the NOCPIX BOLT L35R Thermal Weapon Sight. New for 2025, the BOLT L35R delivers powerful thermal performance, an integrated laser rangefinder, and onboard ballistic calculation in a rugged, affordable rifle scope-style platform.
Built around a 384x288 thermal sensor with a 12 µm pixel pitch and =20 mK thermal sensitivity, the BOLT L35R produces detailed thermal imagery for detecting and identifying game in challenging lighting and weather conditions. The fast 50 Hz refresh rate helps deliver smooth image performance, while the 35mm F/1.0 germanium objective lens provides excellent thermal light transmission and a useful balance of field of view and detection capability.
With a 3.5X optical magnification, 4X digital zoom, and a detection range of up to 1,970 yards, the NOCPIX BOLT L35R is well suited for predator hunting, hog hunting, and other demanding nighttime applications.
Integrated Laser Rangefinder & Ballistic Calculator
The BOLT L35R features an integrated 1,300-yard laser rangefinder, allowing users to quickly measure distance to their target without adding external equipment. Combined with the onboard ballistic calculator, the L35R helps provide the information needed for more confident long-range shot placement.
For shooters looking for an affordable thermal optic with built-in ranging capability, the BOLT series offers an impressive combination of essential features and performance.
Built Like a Traditional Rifle Scope
Unlike many dedicated thermal optics, the NOCPIX BOLT L35R is designed to mount like a traditional day optic using standard 30mm rings or mounts (sold separately). This versatile mounting design makes it a practical choice for both bolt-action and semi-automatic rifles.
The rugged T-6063 aluminum housing, IP67 weather resistance, and recoil rating up to 1000 g/s², including compatibility with cartridges such as .300 Win. Mag. and 7mm Mag., provide the durability needed for demanding field conditions.
Advanced Features for the Field
The BOLT L35R includes a bright 1024x768 AMOLED display, picture-in-picture mode, eight reticle options -- including one customizable DIY reticle -- and multiple thermal color palettes:
Additional features include One-Shot Zero, manual, automatic, and semi-automatic NUC modes, standby mode, image capture, onboard video recording, Wi-Fi connectivity, mobile app compatibility, and user-updatable firmware.
With 32GB of onboard storage, you can capture photos and record your hunts directly from the optic.
Extended Battery Life
The NOCPIX BOLT L35R combines an internal rechargeable battery with a removable, hot-swappable 18650 battery for extended time in the field. The optic provides 6+ hours of runtime and can also be powered through an external USB-C power source.
With fast startup in less than 10 seconds and instant wake-up from standby mode, the BOLT L35R is ready when you need it.
NOCPIX BOLT L35R Thermal Scope Features
Specifications
Specification NOCPIX BOLT L35R
The NOCPIX BOLT L35R 384x288 Thermal Weapon Sight with Laser Rangefinder delivers the essential features serious hunters want in a streamlined and budget-friendly thermal platform. With a sensitive 384 thermal sensor, 35mm germanium lens, integrated 1,300-yard LRF, ballistic calculator, onboard recording, and traditional 30mm mounting compatibility, the BOLT L35R is an excellent choice for hunters looking to upgrade into thermal technology without sacrificing the capabilities that matter most.
