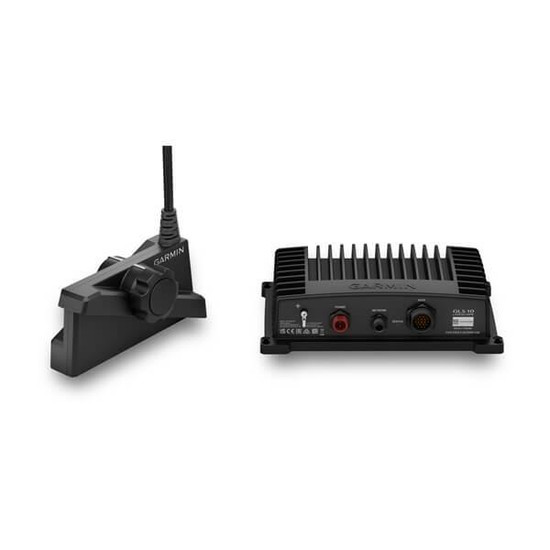

With GLS 10™ and LVS34 Transducer
DIMENSION
GLS 10 sonar black box: 9.7" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm);
LVS34 transducer: 6.4" x 3.1" x 1.9" (16.2 x 7.8 x 4.8 cm)
WEIGHT
H?p den trên máy dò GLS 10: 4,3 lbs (2,0 kg);
Ð?u dò LVS32: 1,9 lbs (0,9 kg)
WATERPROOF IPX7
TEMPERATURE RANGE
GLS 10 Black Box: Operating: -15 C to 70 C
Panoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C
Sonar Features & Specifications
FREQUENCY 530 - 1,100 kHz
MAXDEPTH Down and Forward: 200' (61.0 m)
Connections
CONNECTIONS GARMIN MARINE NETWORK PORTS
1 (small connector)
Electrical Features
POWER INPUT 10-32 V
POWER USAGE 21 W typical, 58 W max
TRANSMIT POWER 500 W
FUSE 7.5 A
COMPASS-SAFE DISTANCE 4" (0.1 m)
Minimum depth: 3' (0.91 m)
Sonar type: Live
Beamwidth: 20° x 135°
Transducer cable length: 20 ft
Transducer number of pins: 21
