Garmin LiveScope 2 Transducer - LVS44

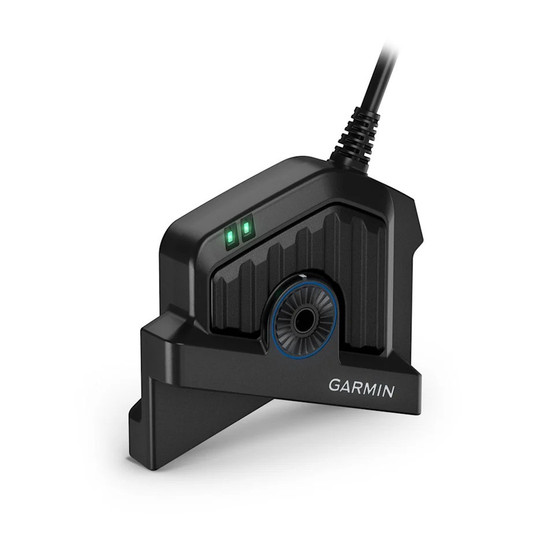

Garmin LiveScope™ 2 HD Transducer (LVS42HD) - Ultra High-Definition Live Sonar with No Black Box Required

Experience the clearest live sonar Garmin has ever created with the Garmin LiveScope™ 2 HD Transducer (LVS42HD). Designed for serious anglers who demand unmatched underwater visibility, the LiveScope 2 HD delivers crystal-clear, real-time sonar with up to 50% more detail and 20% higher resolution than previous generations. Whether you're targeting bass, crappie, walleye, or offshore species, you'll see fish, structure, and your lure with incredible clarity and precision.

Unlike previous LiveScope systems, the LVS42HD connects directly to compatible Garmin chartplotters, eliminating the need for a separate black box. Installation is faster, cleaner, and simpler while maintaining lightning-fast sonar processing that lets you watch fish react to your presentation in real time.

With expanded coverage in Forward, Down, and Perspective Modes, plus bottom tracking out to 125 feet, LiveScope 2 HD gives anglers a wider, more detailed view of what's happening beneath and around the boat. Integrated water detection automatically powers down the transducer when it's out of the water, while the built-in temperature sensor provides accurate water temperature readings.

Pair the LiveScope 2 HD with compatible Garmin chartplotters to unlock over 15 vivid color palettes for enhanced target separation and image clarity. It also integrates seamlessly with the Garmin Spy Pole™ for independent sonar control and OneVü™ Sonar when combined with the GT360UHD, creating an incredible 3D-style view of your underwater environment.

Whether you're fishing tournaments or simply want the most advanced live sonar technology available, the Garmin LiveScope 2 HD provides the detail, speed, and performance needed to locate more fish and make every cast count.

Key Features

• Ultra high-definition live sonar with Garmin's clearest imaging ever
• Up to 50% more detail and 20% higher resolution than previous LiveScope generations
• Real-time Forward, Down, and Perspective viewing modes
• Wider sonar beam angles for increased underwater coverage
• Bottom tracking out to 125 feet in freshwater
• No GLS black box required -- connects directly to compatible Garmin chartplotters
• Fast real-time processing for instant fish and lure tracking
• Automatic water detection powers sonar off when out of the water
• Built-in water temperature sensor
• Compatible with Spy Pole™ wireless sonar control
• Works with OneVü™ Sonar and GT360UHD for advanced 3D sonar visualization
• Choose from 15+ vivid sonar color palettes
• Adjustable Perspective Mode mount included
• What's Included
• Garmin LiveScope™ 2 LVS42HD Transducer
• Adjustable Perspective Mode shaft mount
• Trolling motor barrel mount
• Power/network cable with adapter
• Force® Kraken trolling motor adapter disc
• Mounting hardware
• Documentation

Specifications

General

• Dimensions: 5.2" x 5.3" x 1.9"
• Weight: 3.62 lbs
• Cable Length: 18 ft (5.5 m)
• Connector: 7-pin
• Operating Temperature: 32°F to 104°F (0°C to 40°C)

Sonar Performance

• Sonar Type: Live Sonar
• Frequency: 850-1600 kHz
• Transmit Power: 521 W
• Maximum Depth (Forward & Down): 125 ft
• Target Separation:
• 3.8" at 30 ft
• 12.6" at 100 ft
• Beam Width:
• Forward: 20° x 165°
• Down & Perspective: 20° x 180°

Electrical

• Input Voltage: 10-35 V
• Maximum Power Consumption: 32 W
• Fuse: 7.5 A
• Compass Safe Distance: 4"

Networking

• 1 BlueNet® port with Garmin Marine Network adapter
• 2-wire power connection

Why Buy the Garmin LiveScope™ 2 HD?

The Garmin LiveScope 2 HD is built for anglers who want the most detailed live sonar experience available. With sharper images, wider coverage, simplified installation, and real-time responsiveness, the LVS42HD helps you identify fish faster, understand their behavior, and make more productive casts. Whether you're fishing shallow flats, deep brush piles, or suspended schools, LiveScope 2 HD gives you the confidence to fish smarter and catch more.
