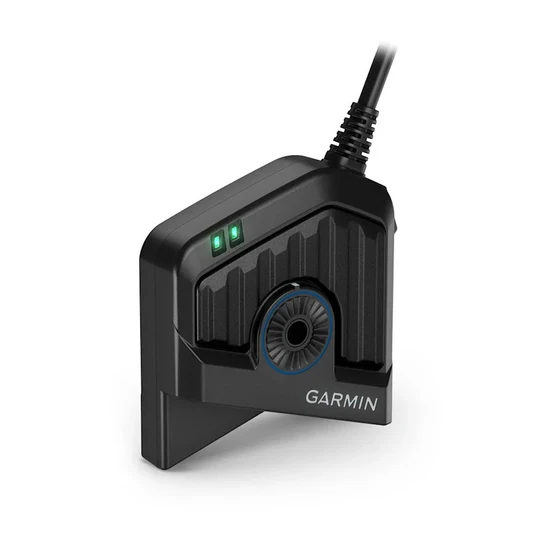

Garmin LiveScope 2 HD Transducer - LVS42HD

Garmin LiveScope™ 2 HD Transducer (LVS42HD) - Ultra High-Definition Live Sonar with No Black Box Required

Experience the clearest live sonar Garmin has ever produced with the Garmin LiveScope™ 2 HD Transducer (LVS42HD). Built for serious anglers who demand exceptional clarity, LiveScope 2 HD delivers ultra-high-definition, real-time sonar images with improved target separation, wider viewing angles, and faster processing speeds. Whether you're targeting bass, crappie, walleye, or offshore species, you'll see fish, structure, and your lure with incredible detail -- helping you make faster, more informed decisions on the water.

Unlike previous LiveScope systems, the LVS42HD connects directly to compatible Garmin chartplotters, eliminating the need for a separate black box. Installation is quicker, cleaner, and easier while maintaining the legendary LiveScope performance anglers trust.

Key Features

• Ultra HD Live Sonar with up to 50% more detail and 20% higher resolution than previous LiveScope generations
• No GLS black box required for simplified installation
• View fish, structure, and lures in real time with Forward, Down, and Perspective Modes
• Bottom tracking out to 125 feet in freshwater
• Wider sonar coverage provides more visibility around your boat
• Integrated image stabilization and improved sonar stitching reduce interference and artifacts
• Fast real-time processing lets you watch fish react instantly
• Automatic water detection powers the sonar off when the transducer leaves the water
• Built-in temperature sensor provides water temperature readings
• Choose from 15+ vivid color palettes for enhanced detail and visibility
• Includes adjustable Perspective Mode mount and trolling motor barrel mount
• See More Fish with Unmatched Live Sonar Clarity

Garmin has taken live sonar to the next level with ultra-high-definition imaging that provides sharper returns, cleaner images, and superior target separation. Fish holding tight to cover, suspended schools, baitfish, and even individual lures are easier to distinguish, giving anglers a significant advantage in every fishing condition.

Integrated image stabilization and improved sonar stitching help produce consistently smooth images while minimizing unwanted sonar artifacts.

No Black Box Means Easier Installation

The LiveScope 2 HD Transducer plugs directly into your compatible Garmin chartplotter and power source using the included BlueNet™ connection. With no external sonar module required, installation is faster, cleaner, and takes up less space in your boat.

Multiple Viewing Modes for Complete Coverage

Switch between three live sonar perspectives to match your fishing style:

Forward Mode - Scout ahead of your boat to locate fish before making a cast.
Down Mode - Watch fish, structure, and lure presentations directly beneath your boat.
Perspective Mode - Gain a wide overhead view of shallow water to quickly locate cruising fish and cover.

The included adjustable Perspective Mode mount makes switching between views quick and simple.

Pair with Spy Pole™ or OneVü™ Sonar

For the ultimate live sonar experience, mount your LiveScope 2 HD transducer to a Spy Pole™ for independent wireless control separate from your trolling motor.

Pair it with Garmin's GT360UHD using OneVü™ Sonar technology to overlay LiveScope imaging onto a 360-degree sonar view, creating an incredibly detailed three-dimensional picture of your surroundings.

What's Included

• Garmin LiveScope™ 2 LVS42HD Transducer
• Adjustable Perspective Mode shaft mount
• Trolling motor barrel mount
• Power/network cable with adapter
• Force® Kraken trolling motor adapter disc
• Mounting hardware
• Documentation

Garmin LiveScope 2 HD Specifications
General

• Model: LVS42HD
• Dimensions: 5.2" x 5.3" x 1.9"
• Weight: 3.62 lbs (1.646 kg)
• Cable Length: 18 ft (5.5 m)
• Beam Width:
• Forward: 20° x 165°
• Down/Perspective: 20° x 180°
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Electrical
• Input Voltage: 10-35V DC
• Maximum Power Consumption: 32W
• Fuse: 7.5A
• Compass Safe Distance: 4"
• Sonar Performance
• Sonar Type: Live Sonar
• Frequency: 850-1600 kHz
• Transmit Power: 521W
• Maximum Range (Forward & Down): 125 ft
• Target Separation at 30 ft: 3.8"
• Target Separation at 100 ft: 12.6"
• Automatic Water Detection: Yes
• Built-In Temperature Sensor: Yes
• Networking
• Connection: 1 BlueNet™ Port with Garmin Marine Network adapter
• Direct Power Connection: Yes (2-wire)

Why Choose the Garmin LiveScope™ 2 HD?

Whether you're chasing tournament-winning bass, locating suspended crappie, or tracking deep-water walleye, the Garmin LiveScope 2 HD Transducer delivers the industry's most advanced live sonar experience. With crystal-clear HD imaging, wider sonar coverage, simplified installation, and real-time performance, LiveScope 2 HD gives anglers the confidence to find more fish and catch them faster.

Upgrade your electronics with the Garmin LiveScope™ 2 HD LVS42HD and experience the clearest, most detailed live sonar Garmin has ever built.
