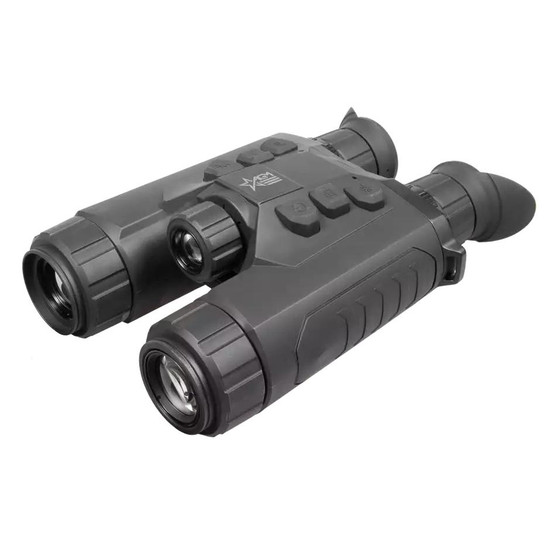

The AGM ObservIR LRF Thermal & Digital Day/Night Vision binocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind these binocular lies within the main thermal viewing channel, with its high-sensitivity 12 micron detector. Unlike other thermal binoculars on the market, the ObservIR LRF also come outfitted with a digital day/night channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 1,000m laser rangefinder simply takes the ObservIR LRF to another level, and this is without even mentioning its 64GB of internal memory and Wi-Fi compatibility. The ObservIR LRF monoculars also come packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: high-sensitivity thermal detector, 25mm objective lens with a 1.0 aperture, 3840x2160 ultra-low light CMOS sensor, various viewing modes, multiple color palettes, up to 4X digital zoom, picture-in picture mode, built-in laser rangefinder, GPS module, long-range IR illuminator, up to 8 hours of battery life on removable, rechargeable 18650 batteries, USB Type-C port for external power capabilities, IP67 waterproof rating. The package includes four 18650 batteries, wrist strap and charger.
12µm high-sensitivity thermal sensor
256x192 thermal resolution
1x, 2x, 4x digital zoom
Dual-spectrum thermal and digital day/night system
Digital image processing technology
Ultra-low illumination optical channel
3840×2160 optical resolution
Built-in IR illuminator
Eye-safe 1,000 m laser rangefinder
1920×1080 resolution, 0.49-inch OLED display
Digital Magnetic Compass
Built-in GPS module
Video/audio recording and snapshot capture
Built-in 64 GB EMMC storage
Wi-Fi hotspot
Standby mode
8-hour continuous operation on a single charge
Auto screen-off function to saving energy
External power supply capability
Rugged housing with rubber overmolding
Waterproof and dustproof
Specifications
Interpupillary Distance
60 mm to 74 mm
Resolution
256 × 192
Infrared Illuminator
Built-in 850nm Smart IR.Power and beam angle adjustment.
Dimensions
221×142×71 mm (8.7×5.6×2.8 in)
Working Temperature
-20°C to 55°C (-4°F to 131°F)
Distance Measurement
Laser Rangefinder: up to 1,000 m, ±1 m accuracy
Video Recording
Yes
Audio Recording
Yes
Magnification
Thermal 4.5x - 18x Optical 5.5x - 22x
Detector type
12µm VOx Uncooled Focal Plane Array
Standby Mode
Yes
Refresh rate
50 Hz
Detection Range (6' object)
1,200 m
Snapshot
Yes
Lens system
Thermal 25 mm; F1.0 Optical 5.5x - 22x
NETD
Less than 35 mK (25°C, F#=1.0)
Power
5 VDC/2 A, USB Type-C interface. Supports external power supply.
Field of view (H × X)
Thermal 7.0° × 5.3° Optical 6.9° × 4.1°
Digital zoom
1x, 2x, 4x
Diopter adjustment range
-5 to +3 dpt
Monitor
1920×1080, 0.49 inch, OLED, 50 FPS
Display
Day, Night, Auto
Storage
Built-in 64 GB EMMC
Battery Type
Two 18650 rechargeable battery (removable)
Wi-Fi
Yes
Battery Life (Operating)
Up to 8 hours continuous running (@25°C, WiFi, IR and LRF off)
Weight
0.89 kg (1.96 Ib)
Protection Level
IP67 (Waterproof)
Package Includes
4x 18650 Rechargeable Battery
Battery Charger
USB Cable
Power Adapter
Tripod Adapter
Quick Start Guide
User Manual
Lens Cloth
Neck Strap
