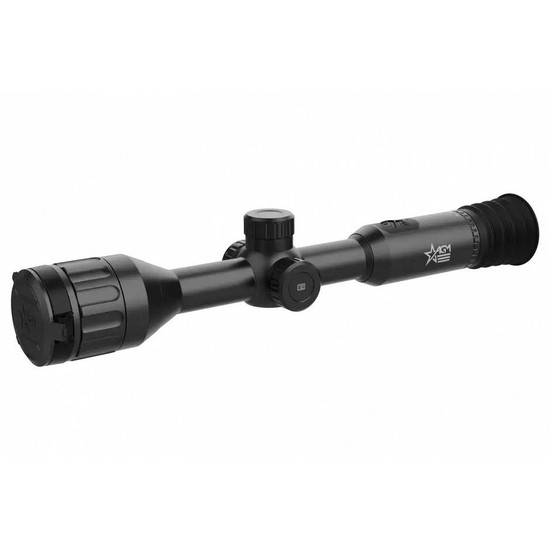

AGM Adder is the thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for your needs where 35mm lens designed for medium range shooting, while the 50mm lens model will be great for long range missions.
Riflescope has 384×288 high-sensitivity thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.
The scope is equipped with unique dual power system. Two builtin 18650 rechargeable batteries with one CR123A replaceable Lithium battery provide up to 15 hours of continuous operation. The device has fast 64GB EMMC storage for on-board video recording and image capturing. Shot Activated Recording (SAR) function allows you not to worry about having to start recording manually each time. Wi-Fi module for live video streaming and video/images recording via application are also available.
The Adder can be mounted to the weapon using standard scope mounts for 30mm tubes. The traditional-style 30mm tube meets the needs of professional hunters who value traditions and seek technological superiority, ensure an extreme detection range of up to 2600 meters.
384×288 thermal resolution
12µm high-sensitivity detector
Fast 50 Hz imaging
High-resolution OLED display
1x, 2x, 4x, 8x digital zoom
On-board video and audio recording
Shot Activated Recording (SAR)
Wi-Fi data transmission
Fast 64GB EMMC built-in storage
Various reticle types and colors
Adjustable color palettes
Standby mode
Waterproof & Shockproof
Dual power system
Up to 15 hours continuous working
External power supply capability
5-Year warranty
CHARACTERISTICS
Refresh rate: 50 Hz
Resolution: 384x288
FOV: 5.4° × 4.0°
DOWNLOADS
Data Sheet
User Manual
EXPORT RESTRICTIONS:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
Item
Description and features
Specifications
Firmware Updataes
Optional equipment
Recent views
SPECIFICATIONS
Palettes
Black Hot, White Hot, Red Hot, Fusion
Reticle
5 types, 4 colors, on/off
Boresight Adjustment
Digital Controlled
Boresight Increment
0.09 mil / 0.31 MOA
Distance Measurement
Yes (Stadiametric)
Scene Mode
Jungle, Recognition
Picture In Picture Mode (PIP)
Yes
Video Recording
Yes
Defective Pixels Correction (DPC)
Yes
Uniformity Correction
Auto, Manual, External Correction
Digital Magnification
4x - 32x
Detector type
12µm, Uncooled, 50 Hz, < 35 mK (25°C, F# = 1.0)
Standby Mode
Yes
Resolution
384 × 288
Detection Range (6' object)
2600 m/yd
Snapshot
Yes
Lens system
50 mm; F/1.0
Field of view (H × X)
5.4° × 4.0°
Digital zoom
1×, 2×, 4×, 8×
Diopter adjustment range
-5 to +5 dpt
Eye relief
= 60 mm
Display
1024×768, 50 Hz, OLED
Battery Type
Two 18650 Rechargeable Batteries (built-in) and one CR123 Battery
Wi-Fi
Yes
CVBS Output
Yes (via USB)
Battery Life (Operating)
Up to 15 hr
Power supply
5 VDC/2 A, USB Type-C Supports QC3.0
Degree of Protection
IP67
Weight
970 g ( 2.14 lb)
Overall Dimensions
420 × 78 × 82 mm (16.5 × 3.1 × 3.2 in)
Magnification
4×
